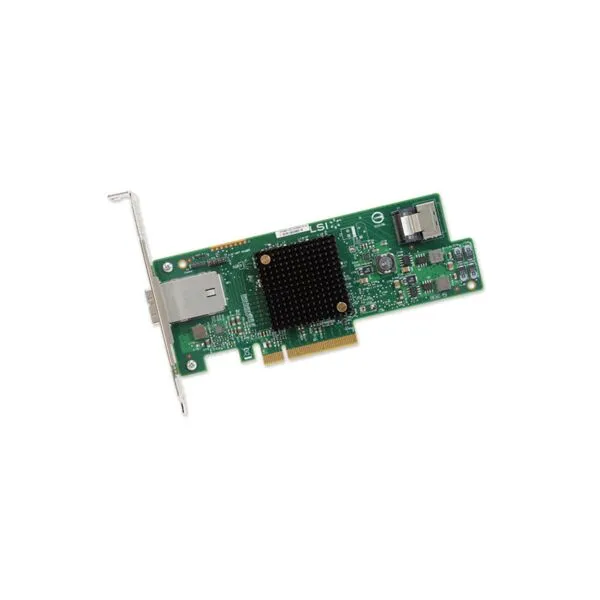

LSI Adaptateur SAS 9217-4i4e

IO Controller LSI SAS2308/ Fusion MPT 2.0 Storage Connectivity; Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant SAS Bandwidth Half Duplex 600 MB/s per lane Port Configurations 4 ea, x1 internal ports (individual drives); 4 ea, x1 external ports-or- 1ea, x4 external wide port Host Bus x8 lane, PCI Express 2.0 compliant PCI Data Burst Transfer Rates Half Duplex x8, PCIe, 8000 MB/s Physical Dimensions Low Profile (2.6" x 6.6") Connectors One x 4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088 Brackets Full height and low profile Cable Support Passive Copper Operating Voltage +12V +/-8%; 3.3V +/-8% PCI Power (Nominal) 9.8W typical, Airflow min 200 LFM Device Support 256 Non-RAID SAS/SATA devices Integrated RAID (IR) RAID 0 10 per volume RAID 1 2 per volume plus hot spare RAID 1E 10 per volume RAID 10 10 per volume Environmental Operating Storage 0°C to 55°C -45°C to 105°C 5 to 90% Non-condensing 5 to 90% Non-condensing MTBF >2,000,000 hours Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See http://www.lsi.com/support/pages/downloads.aspx for details on versions Warranty 3 years; with advanced replacement option Free technical support at http://www.lsi.com/support/Pages/warrantyenhancedsupport.aspx
