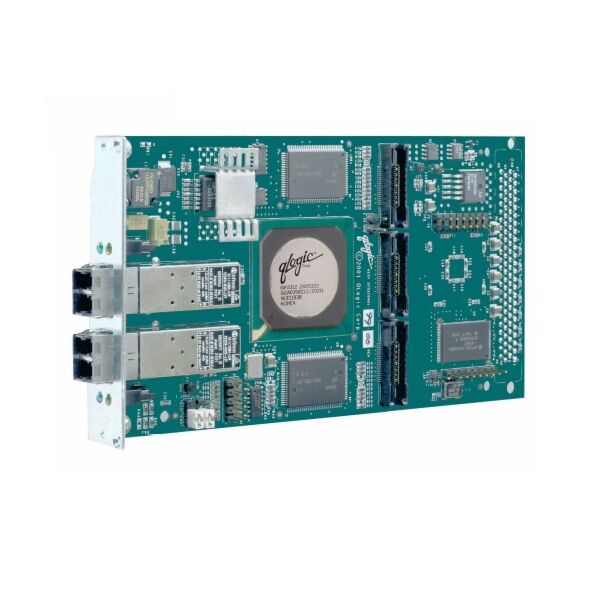

Qlogic QSB2342

Speed 64-bit, 25-MHz SBus Single voltage 5.0 V bus supported Compliance SBus Specification, IEEE std 1496-1993 Fibre Channel Specifications Speed # 200 MBps maximum at half-duplex # 400 MBps maximum at full-duplex Topology FC-AL, FC-AL-2, point to point, switched fabric (FL_Port and F_Port) Buffer credits # For 512-byte frame size, 9 credits issued # For 2K-byte frame size, 3 credits issued Class of service Class 3 Fibre Channel service Protocols SCSI-FCP, IP, FC-TAPE Compliance Second Generation FC Generic Services Definition (FC-GS-2), Third Generation FC Generic Services Definition (FC-GS-3), Fibre Channel-Physical and Signaling Interface (FC-PH), SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel-Arbitrated Loop-2 (FC-AL-2), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), RFC 2625 IP and APR Over Fibre Channel, Fibre Channel Framing and Signaling (FC-FS)
