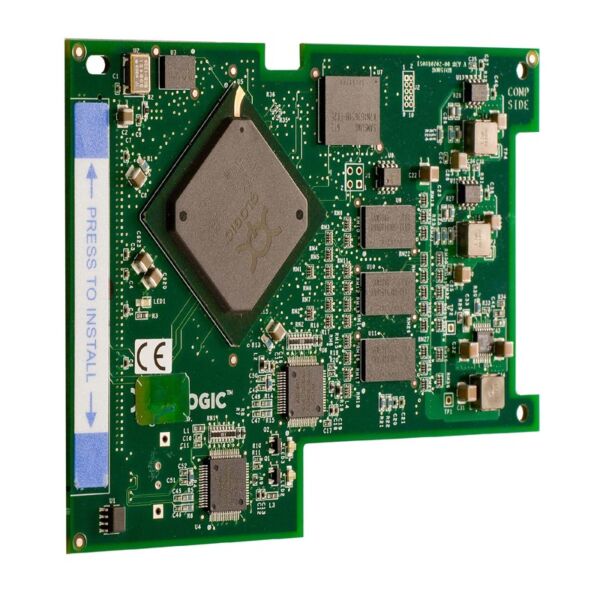

Qlogic QMC4052
SKU :
DISPONIBILITÉ :
Fin de vie
Principales Caractéristiques
Qlogic QMC4052
Description du produit
Host Bus Interface Specifications
Bus interface
64-bit, 133-MHz PCI
Hardware Platforms
IBM HS20, IBM HS21, IBM HS40, IBM LS20, IBM LS21, IBM LS41, IBM JS21
Compliance
# PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a
# PCI Bus Power Management Interface Specification, revision 1.1
iSCSI, TCP/IP, and Ethernet Specifications
Data rate
100/1000 Mbps
Throughput
1Gbps full-duplex line rate
Topology
Any Ethernet Network
iSCSI
RFC 3347: iSCSI Requirements and Design Considerations; CHAP; iSNS; SLP
TCP/IP
Complete state-based TCP/IP offload; RFC791: Internet Protocol Specification (IPv4); RFC1122: Transmission Control Protocol (TCP) Specification; RFC1323: Requirements for Internet Hosts - Communication Layers; RFC2581: TCP Extensions for High Performance; TCP Congestion Control
Ethernet
1500 bytes or 9000 bytes (jumbo)
Physical Specifications
Ports
Two
Form factor
IBM BladeCenter Expansion Card
