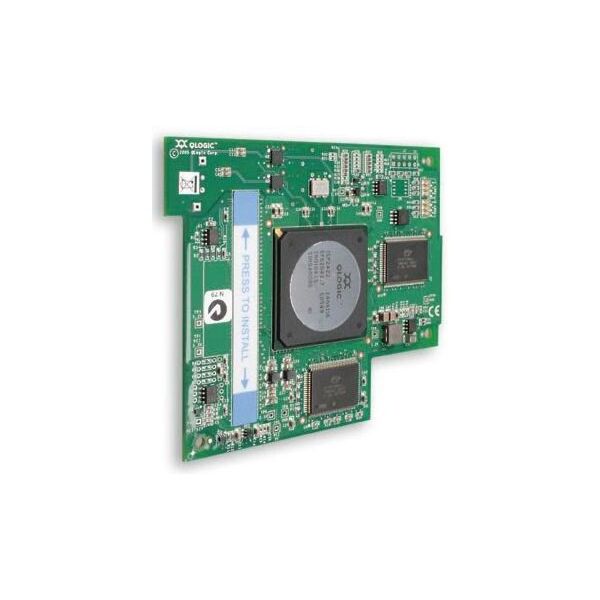

Qlogic QMC2462S

Bus interface 64-bit, 133-MHz PCI-X Memory # 1-MB SRAM per port # 1-MB flash (SPI) # 2-KB NVRAM (SPI) # 4-KB EEPROM (I2C) Hardware platforms # IBM HS20 # IBM HS40 # IBM LS20 # IBM LS21 # IBM LS41 # IBM JS20 Compliance # PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a # PCI Bus Power Management Interface Specification, revision 1.1 Fibre Channel Specifications Data rate # 4/2/1 Gbps auto-negotiation (4.25/2.125/1.0625 Gbps) Performance 150,000 IOPS per port Topology # Point-to-point (N_Port) # Arbitrated loop (NL_Port) # Switched fabric (N_Port) Logins # Support for F_Port and FL_Port login # 2,048 concurrent logins and 2,048 active exchanges per port Protocols # FCP (SCSI-FCP) # FC-TAPE (FCP-2) Compliance # SCSI-3 Fibre Channel Protocol (SCSI-FCP) # Fibre Channel Physical and Signaling Interface (FC-PH) # Fibre Channel Physical and Signaling Interface 2nd Generation (FC-PH-2) # Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3) # Fibre Channel-Arbitrated Loop (FC-AL-2) # Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA) # Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA) # Fibre Channel Tape (FC-TAPE) profile # SCSI Fibre Channel Protocol-2 (FCP-2) # Second Generation FC Generic Services (FC-GS-3) # Third Generation FC Generic Services (FC-GS-3) # Fibre Channel Framing and Signaling (FC-FS) Physical Specifications Ports Dual 4Gbps FC Form factor IBM Small Form Factor (SFF)
