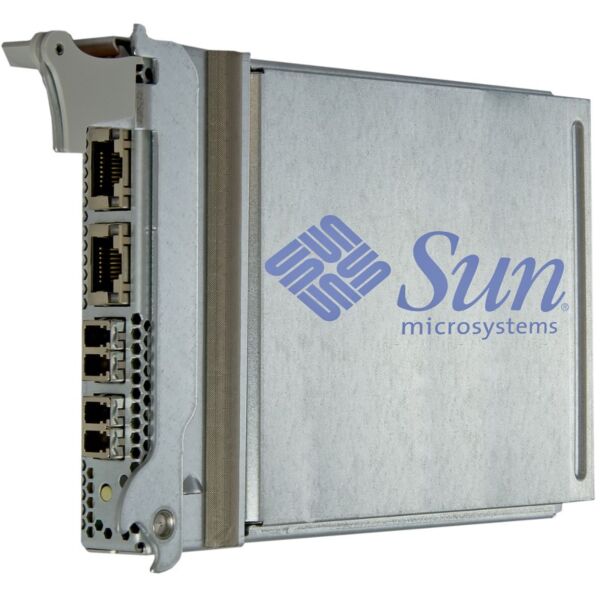

Qlogic QEM3472

Bus interface PCI Express x4 (electrical), x8 (physical connector) Memory Integrated 512KB SRAM per port, 1-MB flash and 128-KB flash (SPI), 2-KB NVRAM (SPI), 4-KB EEPROM (I2C) Hardware platforms # SPARC: Sun Blade T6300, T6320, T6340 # x64: Sun Blade X6220, X6240, X6250, X6440, X6450, X8440, X8450 Compliance # PCI Express Base Specification, rev. 1.0a # PCI Express Module Electromechanical Specification, rev. 1.0 # PCI Bus Power Management Interface Specification, rev. 1.1 Fibre Channel Specifications Data rate 4/2/1 Gbps auto-negotiation (4.25/2.125/1.0625 Gbps) Performance 150,000 IOPS per port Topology Point-to-point (N_Port), Arbitrated loop (NL_Port), Switched fabric (N_Port) Logins Support for F_Port and FL_Port login, 2,048 concurrent logins and 2,048 active exchanges per port Protocols FCP (SCSI-FCP), FC-TAPE (FCP-2) Compliance SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS) Ethernet Specifications Data rate 1Gbps full-duplex per port Topology Any Ethernet network Physical Specifications Ports Dual 4Gbps FC & dual 1Gbps Ethernet Form factor PCI Express Module
