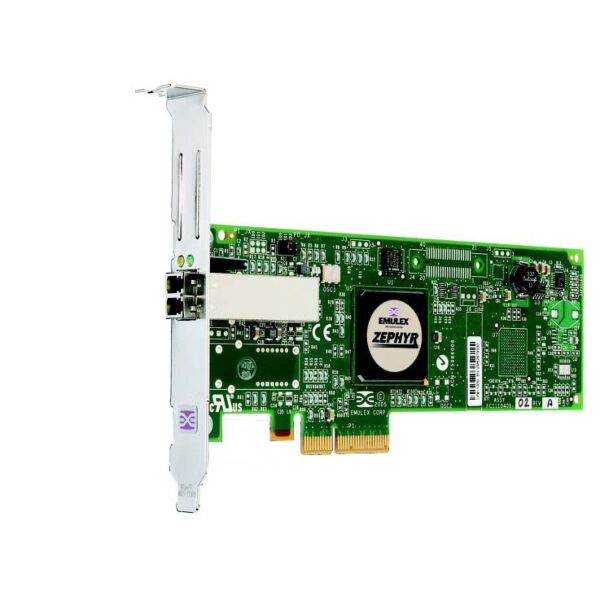

Oracle LightPulse LPe11000

Général Standards ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-SP, FC-PLDA, FC?TAPE, FCP-2, and RFC 2625 (IP over FC) PCI Express base spec 1.0a PCI Express card electromechanical spec 1.0a Fibre Channel class 2 and 3 PHP hot plug-hot swap Architecture Single-channel 4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected Integrated data buffer and code space memory Comprehensive OS Support Windows, Linux, NetWare, Solaris, VMware, HP?UX Additional support is available from OEMs and partners Hardware Environments PowerPC®, SPARC®, x86, x64 and Intel® Itanium® 64-bit processor family Optical Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected) Optics: Short wave lasers with LC type connector Cable: 50/125?m, up to 150 meters at 4Gb/s 62.5/125?m, up to 70 meters at 4Gb/s Physical Dimensions Short, low profile MD2 form factor card 167.64mm x 64.42mm (6.60'' x 2.54'') Standard bracket (low profile available) Power & Environmental Requirements Volts: +3.3 Operating temperature: 0° to 55°C (32° to 131°F) Airflow required: 100 lf/m Storage temperature: -40° to 70°C (-40° to 158°F) Relative humidity: 5% to 95% non-condensing
