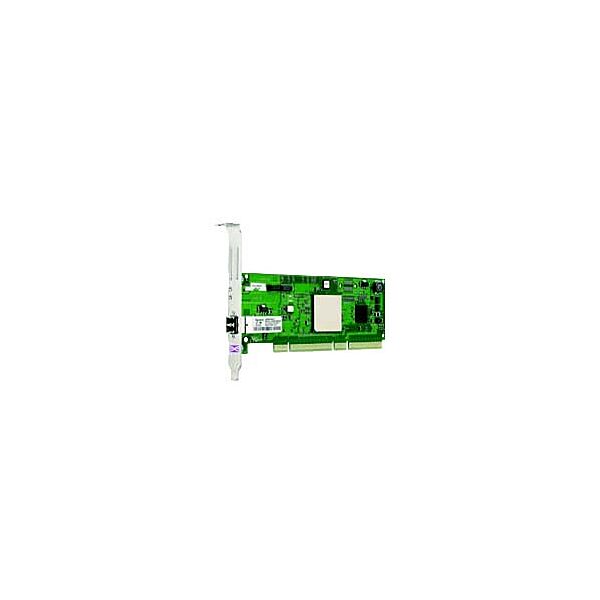

Emulex LightPulse LP101

Général Standards ANSI Fibre Channel - FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-TAPE, FCP-2 Fibre Channel class 2 and 3 PHP hot plug - hot swap LP101: PCI-X 1.0a and PCI 2.3 Architecture Single-channel Up to 16 total port logins available 2Gb/s or 1Gb/s FC Link speeds automatically detected Comprehensive OS Support Windows, Linux Hardware Environments x86 and x64 processor families Optical Data rates: 1.0625 and 2.125 Gb/s auto-detected Optics o Short wave lasers with LC type connector Cable o 50/125 microns, up to 300 meters at 2Gb/s; 150 meters at 4Gb/s o 62.5/125 microns, up to 150 meters at 2Gb/s; 70 meters at 4Gb/s Physical Dimensions Short, low-profile MD2 form factor card 167.64mm x 64.42mm (6.60'' x 2.54'') Standard bracket (low profile available)
